Bodor G Series Base Ultra-large Format Sheet Metal Laser Cutting Machine
Ensure safety, maximize material usage, and streamline operations for superior productivity and cost savings.
The perfect substitute for both plasma and flame cutting machines
Super adaptability

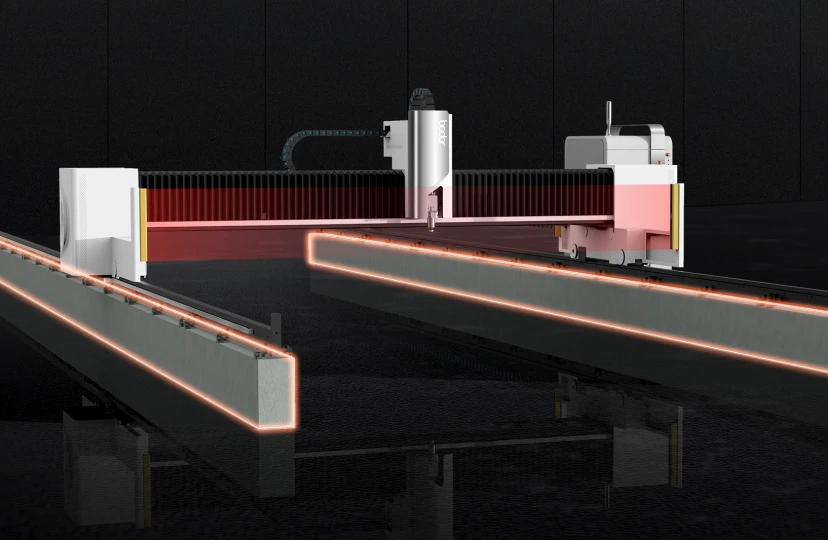

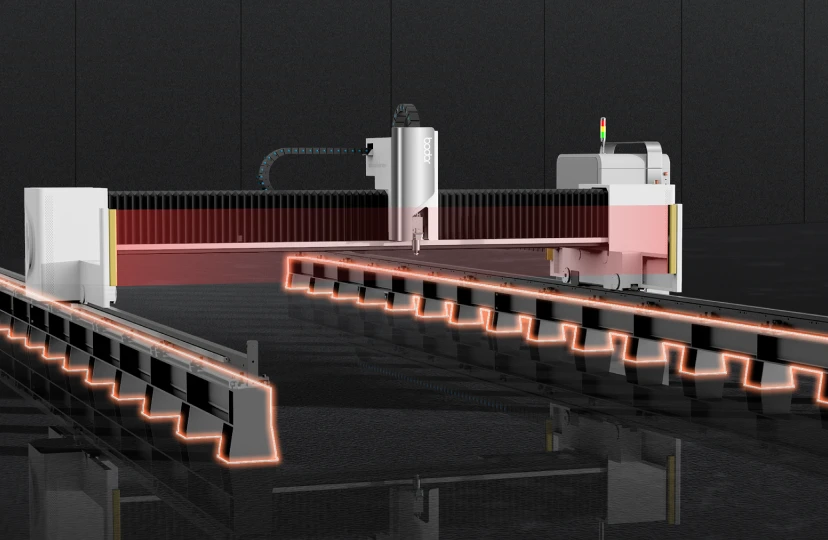

The G series allows for the use of an existing cement base or a Bodor-provided base, significantly reducing foundation costs and enabling quick setup by utilizing existing plasma cutter foundations.
Safety protection

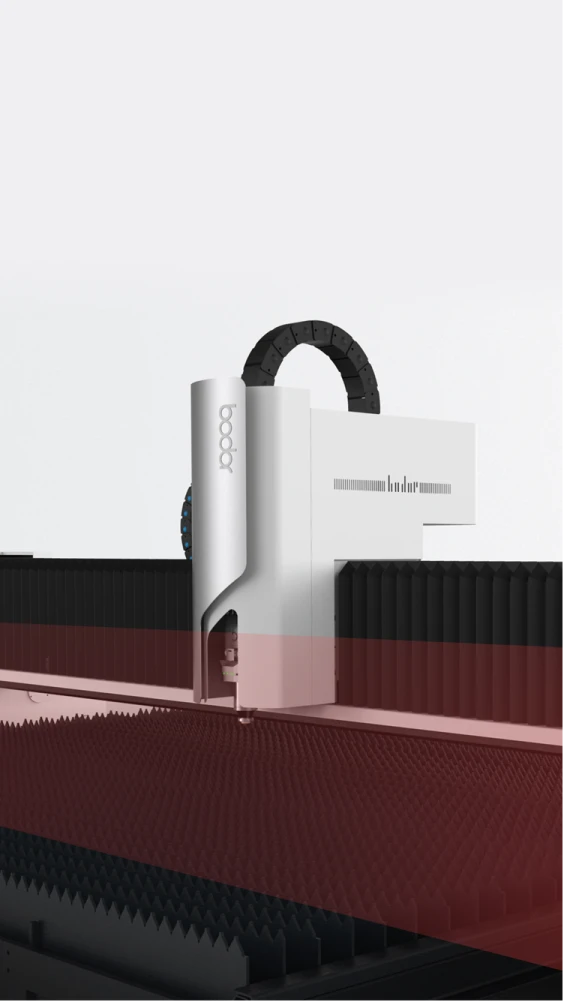

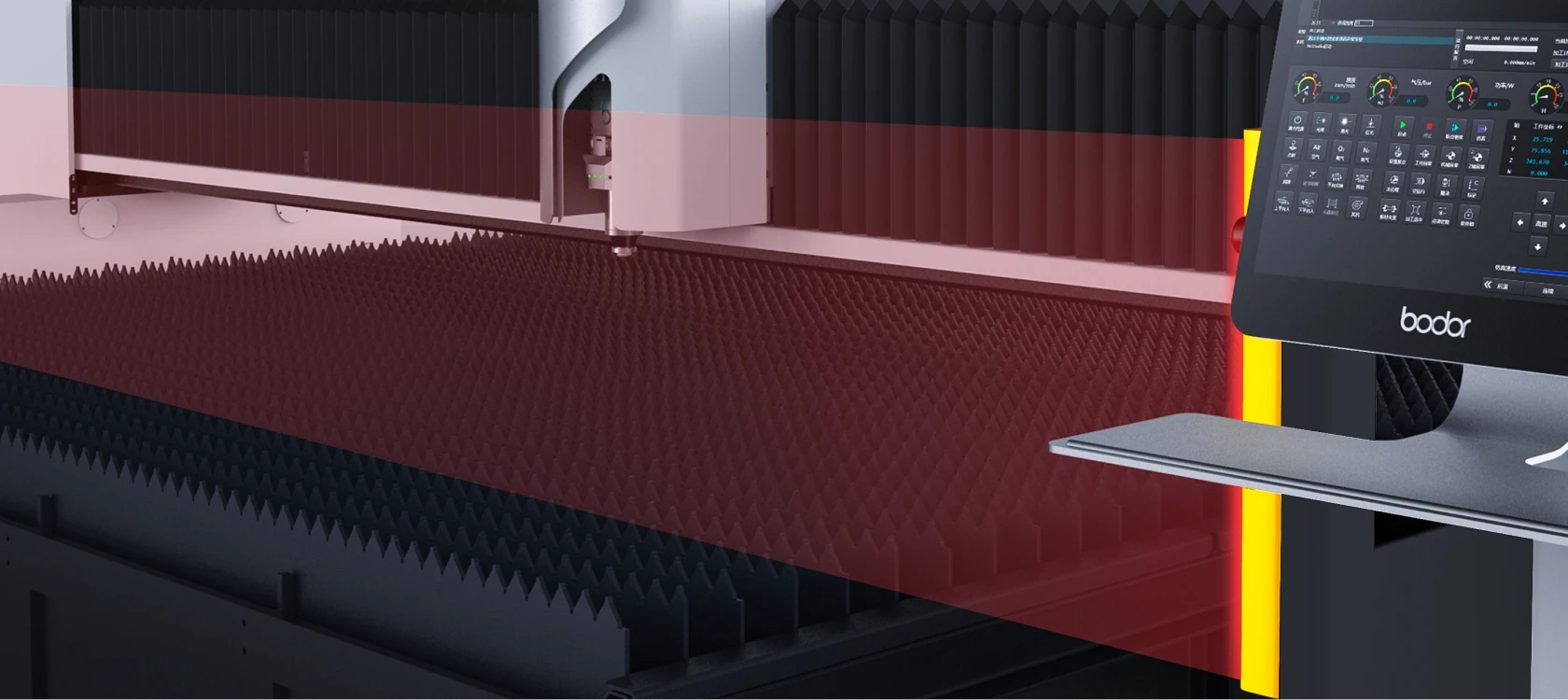

The G series incorporates safety gratings at both ends of the cross beam. The system instantly triggers an emergency stop if an object is detected within the cross beam's safety zone, thereby safeguarding both personnel and equipment.
Improved efficiency
The G series enhances cutting efficiency with features like 12kW-60kW high power options, faster cutting speed and narrower kerf compared to plasma and flame cutters, significantly boosting productivity and reducing material waste.
Features & enhancements
Active obstacle avoidance system
BodorGenius, Bodor's intelligent laser head, uses sensors and algorithms to detect potential obstacles like tilting parts and automatically avoids a potential collision. It largely ensures the stability as well as operating efficiency in the cutting process.

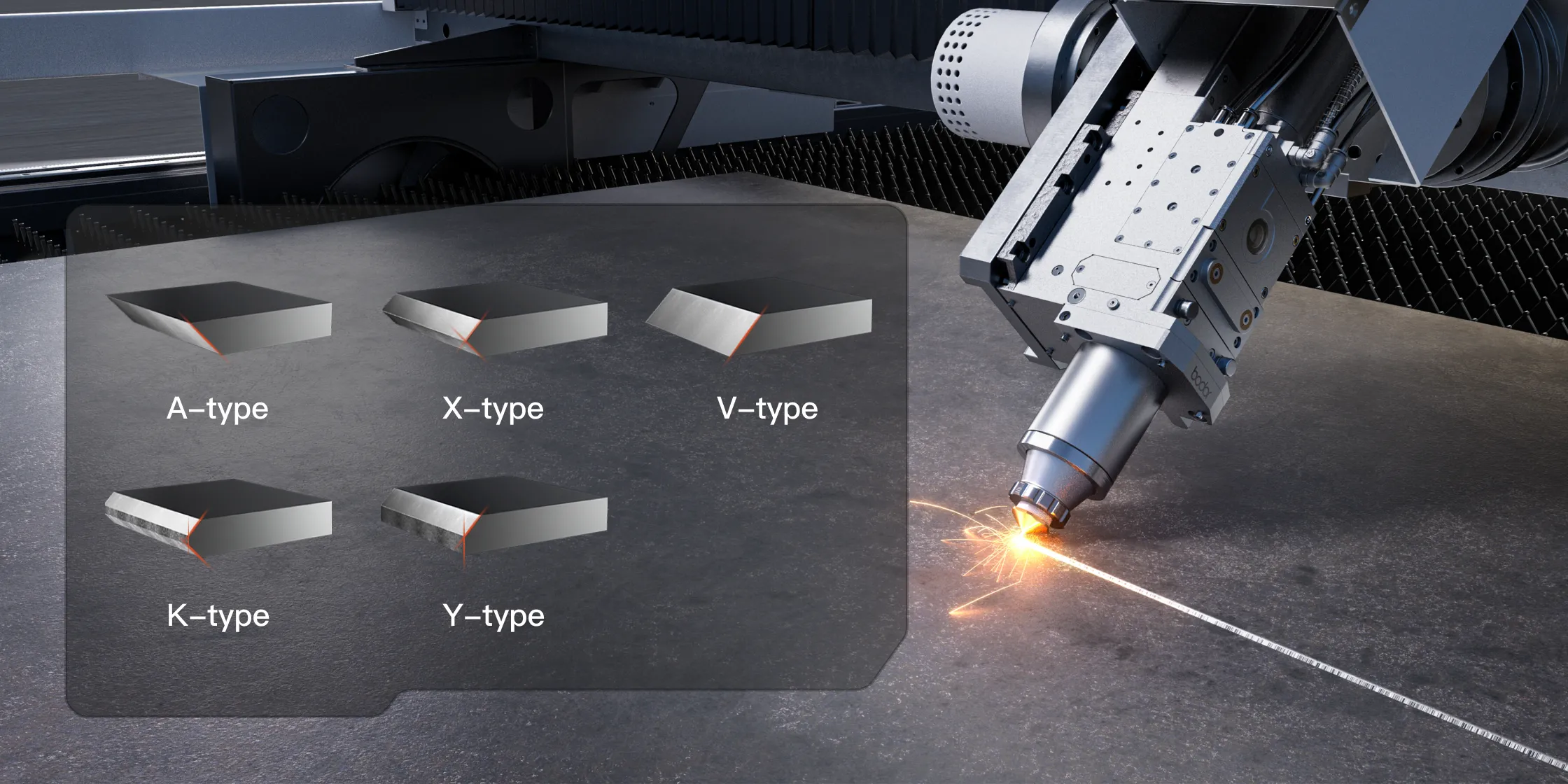

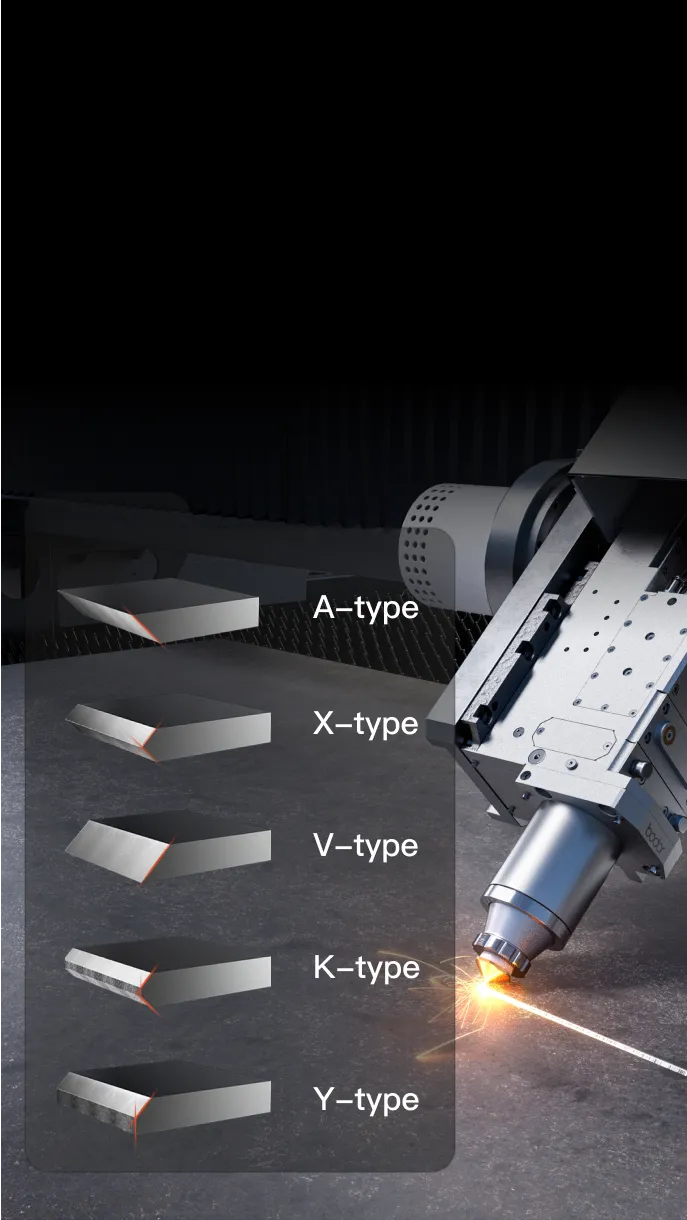

Excellent bevel cuts
The bevel cutting option of G series enables the production of high-precision bevel cuts in +/- 45 degrees, optimizing subsequent assembly procedures and welding performance while lowering production costs. (Available cuts include A-cut bevel, V-cut bevel, Top Y-cut bevel, X-cut bevel, and K-cut bevel).
Lightning piercing
The technology offers rapid, precise piercing with reduced amount of time. It features efficiency monitored processes, focus adjustment, and integration with BodorGenius. This enables quick piercing in sync with the cutting head's movement, optimizing operations for medium-thick plates without extra time or motion.
Intelligent remnant layout
To achieve maximum material utilization, all you need to do is uploading pictures of the remnant to the control system with your mobile phone. G series is able to automatically finish positioning as well as nesting. The higher the percentage of utilization, the more economical the process. Enjoy the benefits of significantly increased cost savings.
Overheating offset
To stabilize laser beam focal point during the cutting process, this function counteracts the adverse effects of overheating by adjusting time and temperature. It is especially applicable to cutting thick sheet metal.
Intelligent pressure adjustment
Based on the air pressure deviation feedback from the system, G series automatically adjusts pressure without manual intervention. The air pressure set in the software corresponds directly to the actual cutting air pressure in use, further ensuring operating stability.
Nesting software compatible with Tekla
The nesting software for the Bodor G series has strong compatibility with Tekla, streamlining your workflow by effortlessly reading material specifications from Tekla files. It simplifies the cutting process with smart material utilization, ensuring maximum efficiency and less waste.
Specifications & parameters
G3000
G4000
G5000
G3000-12
G3000-16
G3000-20
G3000-24
G3000-28
G4000-12
G4000-16
G4000-20
G4000-24
G4000-28
G5000-12
G5000-16
G5000-20
G5000-24

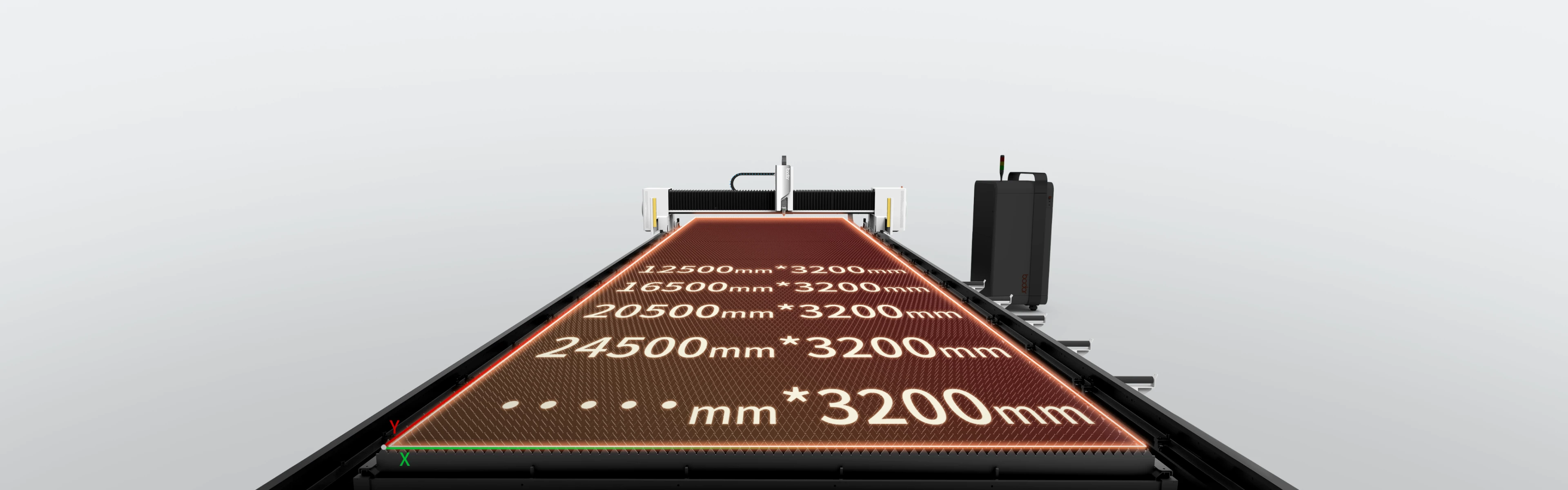

| Working area | 12500mm*3200mm |
| Laser output power | 60kW / 30kW / 24kW / 12kW |
| Positioning accuracy | ±0.1mm/m |
| Repositioning accuracy | ±0.1mm |
| Max. linkage speed | 50m/min |
| Working area | 16500mm*3200mm |
| Laser output power | 60kW / 30kW / 24kW / 12kW |
| Positioning accuracy | ±0.1mm/m |
| Repositioning accuracy | ±0.1mm |
| Max. linkage speed | 50m/min |
| Working area | 20500mm*3200mm |
| Laser output power | 60kW / 30kW / 24kW / 12kW |
| Positioning accuracy | ±0.1mm/m |
| Repositioning accuracy | ±0.1mm |
| Max. linkage speed | 50m/min |
| Working area | 24500mm*3200mm |
| Laser output power | 60kW / 30kW / 24kW / 12kW |
| Positioning accuracy | ±0.1mm/m |
| Repositioning accuracy | ±0.1mm |
| Max. linkage speed | 50m/min |
| Working area | 28500mm*3200mm |
| Laser output power | 30kW / 24kW / 12kW |
| Positioning accuracy | ±0.1mm/m |
| Repositioning accuracy | ±0.1mm |
| Max. linkage speed | 50m/min |
| Working area | 12500mm*4200mm |
| Laser output power | 30kW / 24kW / 12kW |
| Positioning accuracy | ±0.1mm/m |
| Repositioning accuracy | ±0.1mm |
| Max. linkage speed | 50m/min |
| Working area | 16500mm*4200mm |
| Laser output power | 30kW / 24kW / 12kW |
| Positioning accuracy | ±0.1mm/m |
| Repositioning accuracy | ±0.1mm |
| Max. linkage speed | 50m/min |
| Working area | 20500mm*4200mm |
| Laser output power | 30kW / 24kW / 12kW |
| Positioning accuracy | ±0.1mm/m |
| Repositioning accuracy | ±0.1mm |
| Max. linkage speed | 50m/min |
| Working area | 24500mm*4200mm |
| Laser output power | 30kW / 24kW / 12kW |
| Positioning accuracy | ±0.1mm/m |
| Repositioning accuracy | ±0.1mm |
| Max. linkage speed | 50m/min |
| Working area | 28500mm*4200mm |
| Laser output power | 30kW / 24kW / 12kW |
| Positioning accuracy | ±0.1mm/m |
| Repositioning accuracy | ±0.1mm |
| Max. linkage speed | 50m/min |
| Working area | 12500mm*5150mm |
| Laser output power | 30kW / 24kW / 12kW |
| Positioning accuracy | ±0.1mm/m |
| Repositioning accuracy | ±0.1mm |
| Max. linkage speed | 50m/min |
| Working area | 16500mm*5150mm |
| Laser output power | 30kW / 24kW / 12kW |
| Positioning accuracy | ±0.1mm/m |
| Repositioning accuracy | ±0.1mm |
| Max. linkage speed | 50m/min |
| Working area | 20500mm*5150mm |
| Laser output power | 30kW / 24kW / 12kW |
| Positioning accuracy | ±0.1mm/m |
| Repositioning accuracy | ±0.1mm |
| Max. linkage speed | 50m/min |
| Working area | 24500mm*5150mm |
| Laser output power | 30kW / 24kW / 12kW |
| Positioning accuracy | ±0.1mm/m |
| Repositioning accuracy | ±0.1mm |
| Max. linkage speed | 50m/min |
Applicable industries
Supercharge metal cutting across industries, replacing plasma & flame solutions with superior precision & efficiency.
Machining
Tailored for efficient machining, the G Series boosts productivity with its advanced cutting capabilities.
Mining machinery
Ideal for crafting durable mining machinery parts, offering efficiency and cost savings in heavy-duty material processing.
Rail transit
Supports rail transit infrastructure with precise cuts for components, enhancing safety and performance standards.
Construction equipment
Enables the production of high-strength construction equipment through precise and reliable cutting technology.
Shipbuilding
Provide shipbuilding with accurate and efficient cutting solutions, contributing to the construction of sophisticated marine vessels.
