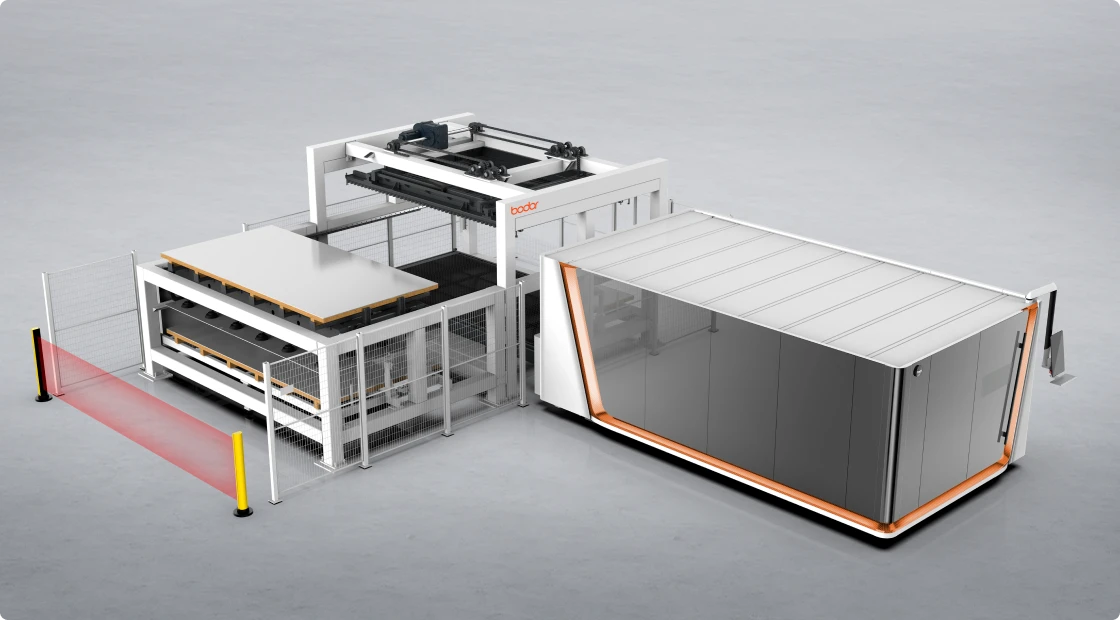

Full Automatic Loading and Unloading System

icon product Automated Loading and Unloading

Fully automated processing of loading and unloading, save time and manpower.

icon product Complete equipment delivery

The complete equipment is put in the container for delivery, saving delivery costs.

icon product Flexible layout

The loading module is suitable on both the left and the right, achieving flexible on-site layout methods.

icon product Fast Loading

Continuous loading time reaches as short as 110 seconds.

icon product Automatic Sheets Splitting

Lifting the corners of sheets first, avoids loading multiple sheets.

icon product Material Detection

iTrans gives an intelligent reminder once no sheet detected on the material pallets.

Parameter Configuration :

Adaptable model: P3
Working area: 1000mm*1000mm-3000mm*1500mm
Module dimensions: 5400mm*3970mm*3070mm
Weight: 6100kg
Operation method: Touch screen operation
Maximum loading weight: 900Kg
Maximum thickness of feeding plate: 25mm
Maximum height of finished sheet: 85mm

Applicable Models

  • P3 All Cover Exchange Platform Laser Cutting Machine

  • P3

    First slide

Applicable Industry:

The industries that need to prevent scratch :

applicable industry

Engineering Machinery

applicable industry

Electrical Cabinet Industry

applicable industry

Elevator Industry

iTrans supplies approaches to industries needing few types of metal sheet cutting, such as engineering machinery, electrical cabinet, automotive metal sheet.
